Diesel - Generator
Adhesives & Sealants in Diesel Generator
- Improved equipment reliability and service life
- Reduced maintenance and downtime
- Protection against harsh environmental conditions
- Enhanced vibration resistance in field operations
Adhesive & Sealant Solutions for Diesel Generator Assemblies
Diesel generator systems contain engine and transmission-related housings, hydraulic or pneumatic connections, rigid metal flanges and serviceable mechanical joints that require dependable sealing under demanding operating conditions.
Fasto's current Agricultural Machinery page identifies Diesel Generator as an application and highlights improved equipment reliability and service life, reduced maintenance and downtime, protection against harsh environmental conditions and enhanced vibration resistance in field operations.
Product selection should be based on the actual joint, substrate, fluid or gas exposure, operating temperature, pressure, vibration and assembly or maintenance process.
- Pipe thread sealing
- Flange and housing sealing
- Form-in-place gasket sealing
- Oil, coolant and fluid leakage prevention
- Vibration-resistant sealing
- OEM assembly and maintenance support
Critical Adhesive & Sealant Applications in Diesel Generators
Based on Fasto's current Diesel Generator application listing and the documented functions of the recommended products, the following application areas can be evaluated for suitable assemblies.
Hydraulic & Pneumatic Pipe Thread Sealing
Fasto A750 is a primerless anaerobic pipe thread sealant designed for fine-to-medium pitch metal pipe threads where reliable leak prevention and vibration resistance are required.
- Hydraulic pipe fittings
- Pneumatic connections
- Pressure lines
- Fluid leakage prevention
Flange & Housing Sealing
Fasto A475 can be evaluated for rigid metal flange and housing joints where a liquid gasket is required to reduce leakage and replace suitable pre-cut gasket arrangements.
- Engine-related housings
- Rigid metal flanges
- Machined mating surfaces
- Oil and coolant sealing
Form-In-Place Gasket Sealing
Fasto A418 is a high-viscosity, medium-strength anaerobic gasket compound for suitable rigid metal flanges and flat mating surfaces requiring a formed-in-place seal.
- Machined metal joints
- Equipment covers
- Inspection plates
- Leak-proof joint formation
Vibration-Resistant Joint Protection
Anaerobic sealing technologies can support selected rigid metal interfaces exposed to vibration, shock and thermal cycling when the product is matched to the joint design.
- Vibration-exposed joints
- Mechanical shock
- Thermal cycling
- Joint integrity
Oil, Coolant & Fluid Leakage Prevention
Suitable flange and thread sealants can help maintain sealing integrity in assemblies exposed to oils, fuels, coolants, hydraulic fluids and other operating media.
- Engine oils
- Coolants
- Hydraulic fluids
- Fuel and process fluids
OEM Assembly & Maintenance Re-Sealing
Fast-curing and serviceable grades can be evaluated for generator manufacturing lines, equipment servicing, overhaul and reassembly applications.
- OEM assembly
- Maintenance & overhaul
- Joint re-sealing
- Reduced gasket inventory
Fasto Solutions for Diesel Generator Applications
Fasto's current Agricultural Machinery page specifically recommends A750, A475 and A418 for its Diesel Generator application.

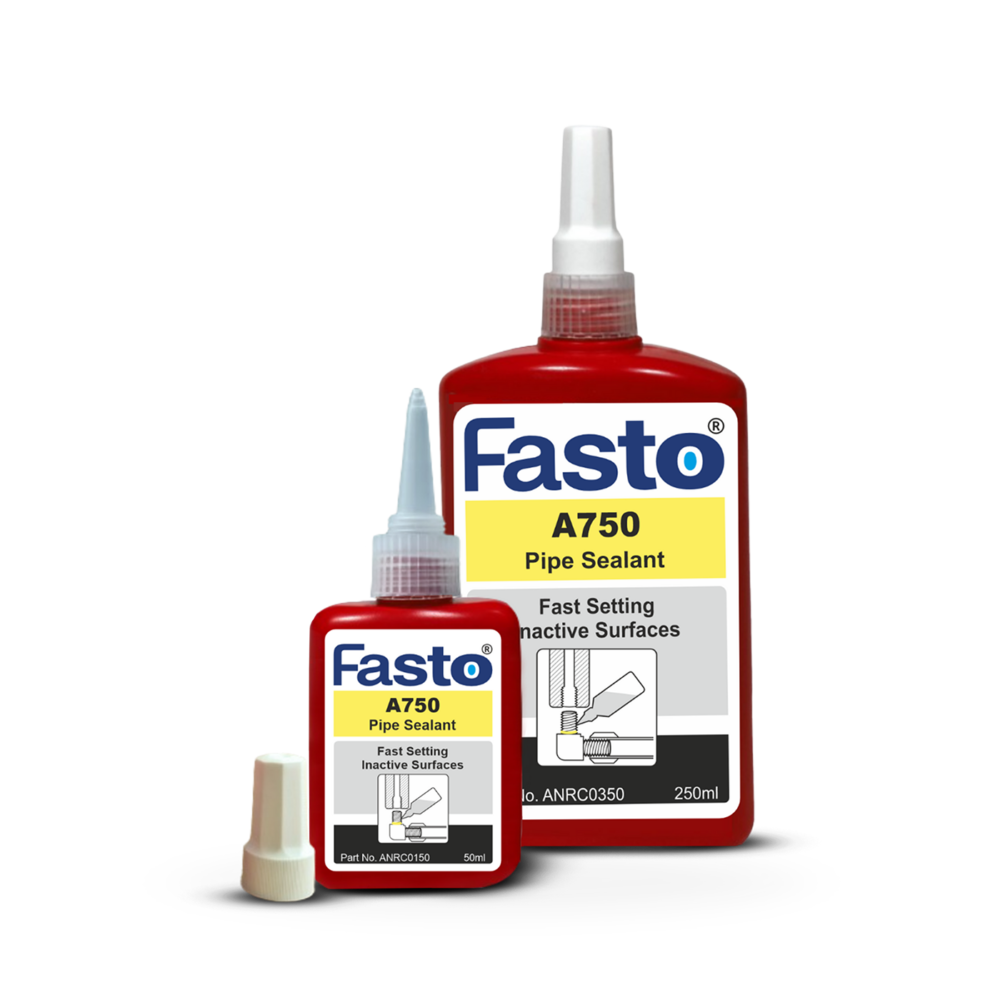

Fasto A750
Medium-strength anaerobic pipe thread sealant for suitable fine-to-medium pitch metal threads, with fast fixture time, vibration resistance and resistance to oils, fuels, solvents and water.
View Product

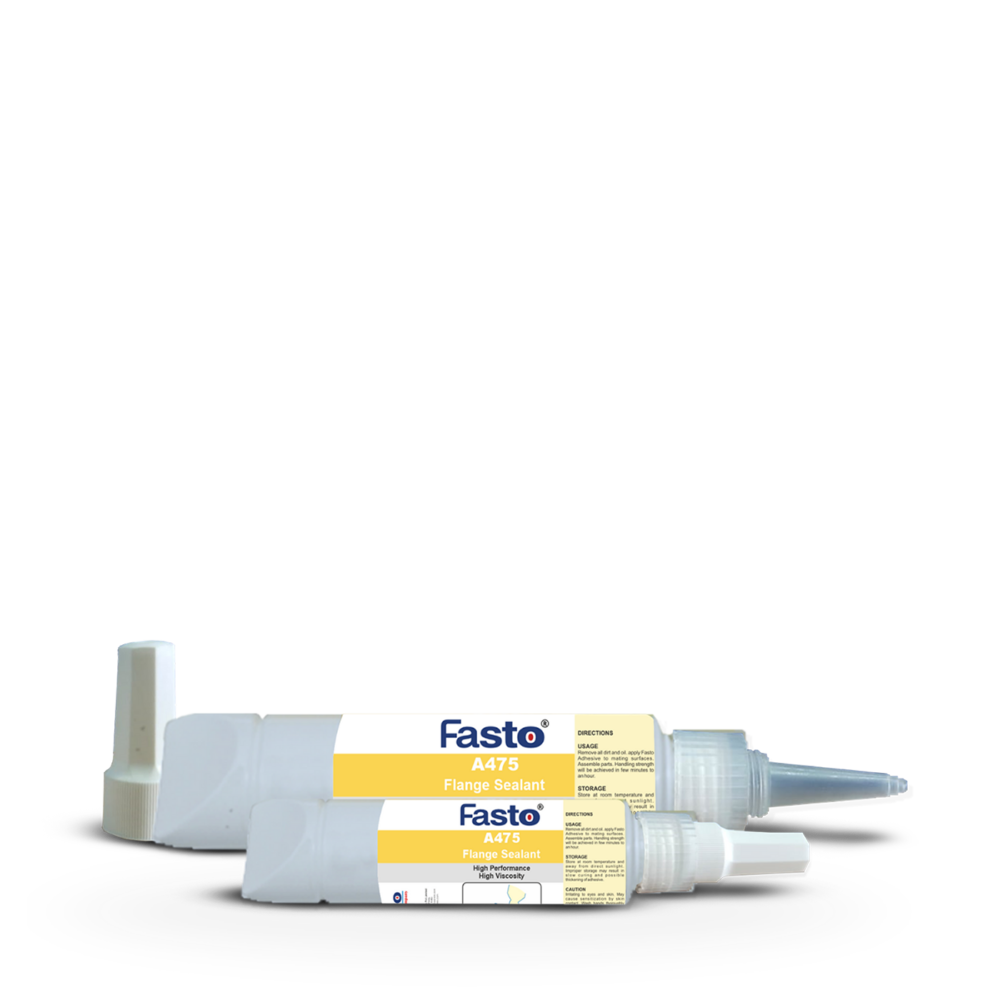

Fasto A475
Medium-strength anaerobic liquid gasket compound for suitable rigid metal flange surfaces, offering controlled application, fast fixture on steel and resistance to oils, fuels and vibration.
View Product
Fasto A418
Very-high-viscosity anaerobic gasket compound for suitable rigid metal flanges and flat mating surfaces, designed for leak-proof sealing and controlled serviceable joints.
View ProductDiesel Generator Application to Fasto Product Mapping
Initial mapping is based on Fasto's current Diesel Generator recommendation and the documented application functions of A750, A475 and A418. Final selection should be validated against the actual assembly.
| Diesel Generator Application | Primary Function | Fasto Product |
|---|---|---|
| Hydraulic / Pneumatic Pipe Threads | Thread sealing and leakage prevention | A750 |
| Rigid Metal Flanges | Liquid gasket and flange sealing | A475 |
| Engine / Housing Joints | Leak-proof metal joint sealing | A475 |
| Flat Metal Mating Surfaces | Form-in-place gasket formation | A418 |
| Inspection / Equipment Covers | Serviceable flange sealing | A418 |
| Vibration-Exposed Joints | Sealing under vibration and thermal cycling | A750 |
What Matters in Diesel Generator Adhesive & Sealant Selection?
Fluid & Chemical Exposure
Generator assemblies may encounter oils, fuels, coolants, hydraulic fluids and cleaning chemicals. Product compatibility should be verified for the actual medium.
Vibration & Shock
Engine-driven equipment can experience continuous vibration and mechanical shock, making joint integrity and sealing performance important.
Pressure & Leakage
Pipe and fluid connections require a sealant grade matched to the system pressure, joint geometry, thread size and operating medium.
Temperature Cycling
Thermal changes during starting, loading and shutdown can affect joint movement and cure performance, so the product operating range must be considered.
How to Select the Right Diesel Generator Adhesive or Sealant
Selection should consider the actual component, substrate, pressure, fluid, temperature and manufacturing or maintenance process.
01. Substrate
- Steel and cast iron
- Stainless steel
- Aluminium components
- Coated or treated metal
02. Joint Type
- Pipe threads
- Rigid flanges
- Flat mating surfaces
- Equipment covers
03. Operating Media
- Engine oil
- Fuel
- Coolant
- Hydraulic / pneumatic media
04. Environmental Conditions
- Heat
- Moisture
- Dust and contaminants
- Outdoor exposure
05. Mechanical Conditions
- Vibration
- Shock loads
- Pressure
- Thermal cycling
06. Assembly Process
- Surface preparation
- Controlled dispensing
- Assembly timing
- Cure and validation
Applying Adhesives & Sealants in Diesel Generator Manufacturing
The exact process depends on the selected product, joint geometry and generator component.
Surface Preparation
Clean the relevant threads or flange surfaces and remove oil, grease and contaminants according to the selected product requirements.
Controlled Dispensing
Apply the recommended bead or quantity of A750, A475 or A418 to the engaged sealing area.
Assembly
Assemble the pipe, flange or housing joint within the specified working window and tighten according to the equipment specification.
Cure & Validation
Allow the material to cure under the required conditions and validate leakage, pressure and joint performance before full operation.
