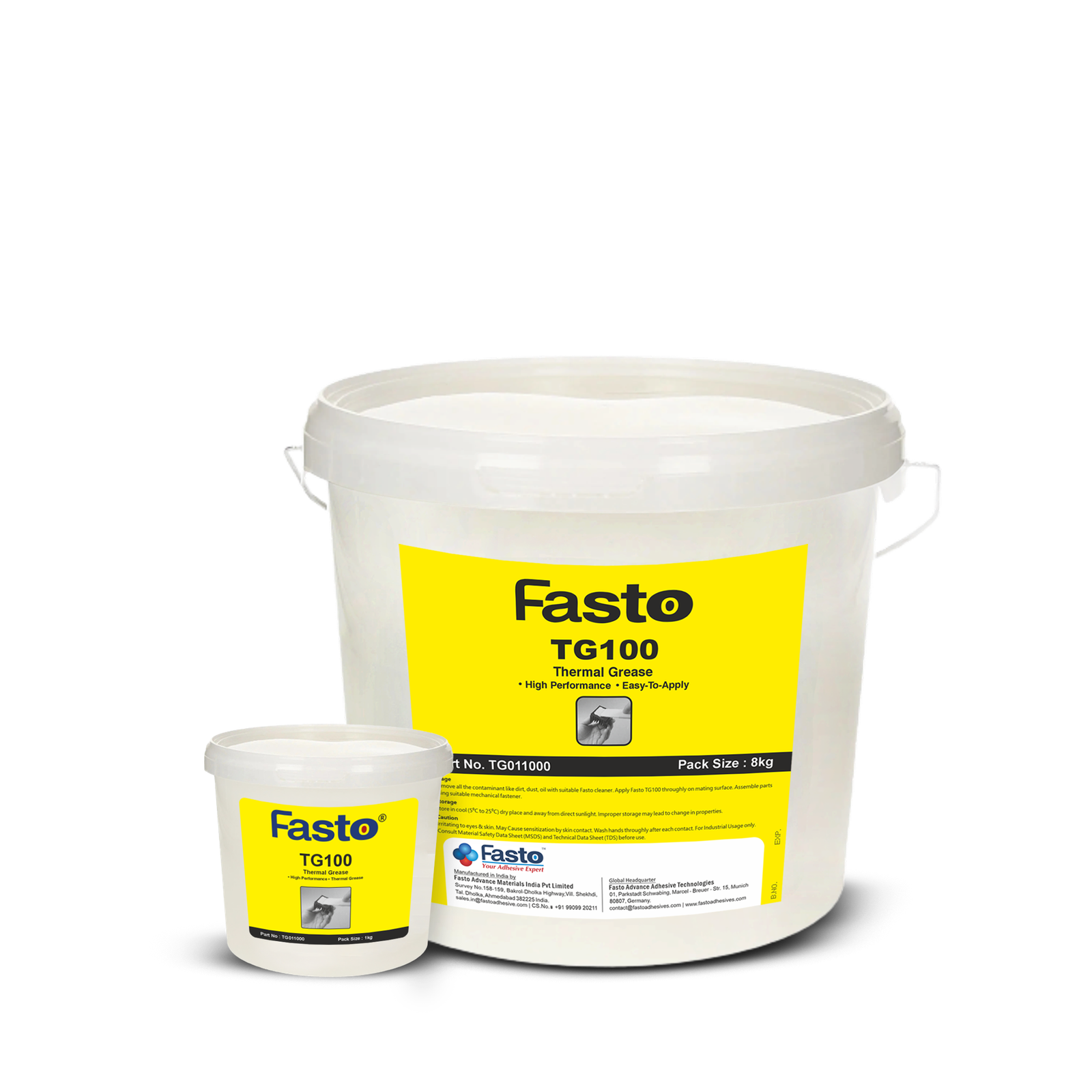

Fasto TG100 – High-Performance Thermally Conductive Silicone Grease

Q: What is Fasto SP70 used for?

Fasto SP70 is a two-component silicone potting compound specially designed for potting solar PV junction boxes. It protects electrical connections from moisture, dust, UV radiation, thermal cycling, and environmental exposure.

Q: Why is potting required in solar junction boxes?

Potting creates a protective barrier around electrical components inside the junction box, preventing moisture ingress, corrosion, electrical leakage, and mechanical damage while improving long-term reliability.

Q: How can I select the right potting compound for my solar application?

The ideal potting compound should provide UV resistance, electrical insulation, moisture protection, thermal stability, and long-term outdoor durability. Fasto SP70 is specifically engineered to meet these requirements for solar junction box applications.

Q: What industries commonly use Fasto SP70?

Fasto SP70 is primarily used in: Solar PV module manufacturing Renewable energy equipment Electrical and electronic assemblies Outdoor power systems

Q: 8. What are the key benefits of using Fasto SP70?

Key benefits include: Excellent weather resistance Superior UV stability Strong moisture protection Electrical insulation Long-term outdoor durability Reliable performance in harsh environments Protection against vibration and mechanical stress

Fasto TG100 is a one-part, non-curing, high-performance silicone-based thermal grease designed to ensure efficient heat transfer between heat-generating components and heat-dissipating surfaces. It is specially formulated to fill microscopic air gaps, reducing thermal resistance and improving heat dissipation in electronic, electrical, and LED assemblies.

With excellent thermal conductivity, strong electrical insulation properties, and outstanding performance at elevated temperatures, Fasto TG100 ensures reliable thermal management and long-term stability under continuous and intermittent high-temperature operating conditions.

Key Features

One-Part, Non-Curing Silicone Paste
Ensures long-term thermal performance without drying or cracking.
High Thermal Conductivity
Thermal conductivity of 1.1 W/m·K for efficient heat dissipation.
Excellent Electrical Insulation
High dielectric strength (>5.1 kV/mm) for electronics safety.
Wide Operating Temperature Range
- Continuous: -50°C to 200°C
- Intermittent: up to ~250°C
Easy Application
Thick paste consistency allows smooth application using a spatula.
Good Weatherability & Stability
Maintains performance under harsh thermal and environmental conditions.

Benefits

Improves heat dissipation efficiency
Extends component and device lifespan
Prevents overheating-related failures
Ensures stable performance in high-temperature electronics
Reduces thermal resistance caused by air gaps

Primary Application	Sub-Applications	Functional Purpose	Key Performance Advantage
LED Assembly Thermal Interface	LED modules, LED boards	Heat dissipation	Non-drying, stable thermal conductivity
Heat Sink Mounting	Metal-to-metal interfaces	Fill air gaps	Uniform thin layer application
Electronic Device Assembly	General electronic devices	Improve thermal transfer	Electrical insulation & thermal stability
Power Electronics	Small power modules	Prevent overheating	Wide temperature resistance
Industrial Equipment	Control panels	Continuous heat management	Long-term stability
Electrical Insulation Applications	Sensitive electronic assemblies	Electrical safety	High dielectric strength
Maintenance & Rework Applications	Serviceable electronics	Easy disassembly	Non-curing formulation

Surface Preparation

Ensure contact surfaces are clean, dry, and free from rust, scale, dust, grease, oil, release agents, or any other contaminants.
Clean surfaces using a suitable Fasto cleaner for optimal thermal contact and performance.

Application Method

Apply Fasto TG100 evenly using a spatula or suitable applicator.
Spread the paste uniformly to eliminate trapped air between the heat-emitting surface and the heat-radiating surface.
Apply sufficient quantity to ensure complete surface contact, then wipe off excess material.
Avoid excessive application, as it may reduce thermal efficiency.

Application Conditions

Application temperature range: 5°C to 40°C
Optimum application temperature: 15°C to 25°C

Curing Information

Non-curing product
Remains as a stable, flexible paste throughout service life
No skin formation or hardening over time

Joint & Thermal Interface Guidelines

Designed for thermal interface applications, not structural bonding
Suitable for filling air gaps between uneven contact surfaces
Ideal for continuous heat transfer at elevated temperatures
Not recommended for use in pure oxygen or oxygen-rich environments
Should not be used as a sealant against chlorine or strong oxidizing materials
