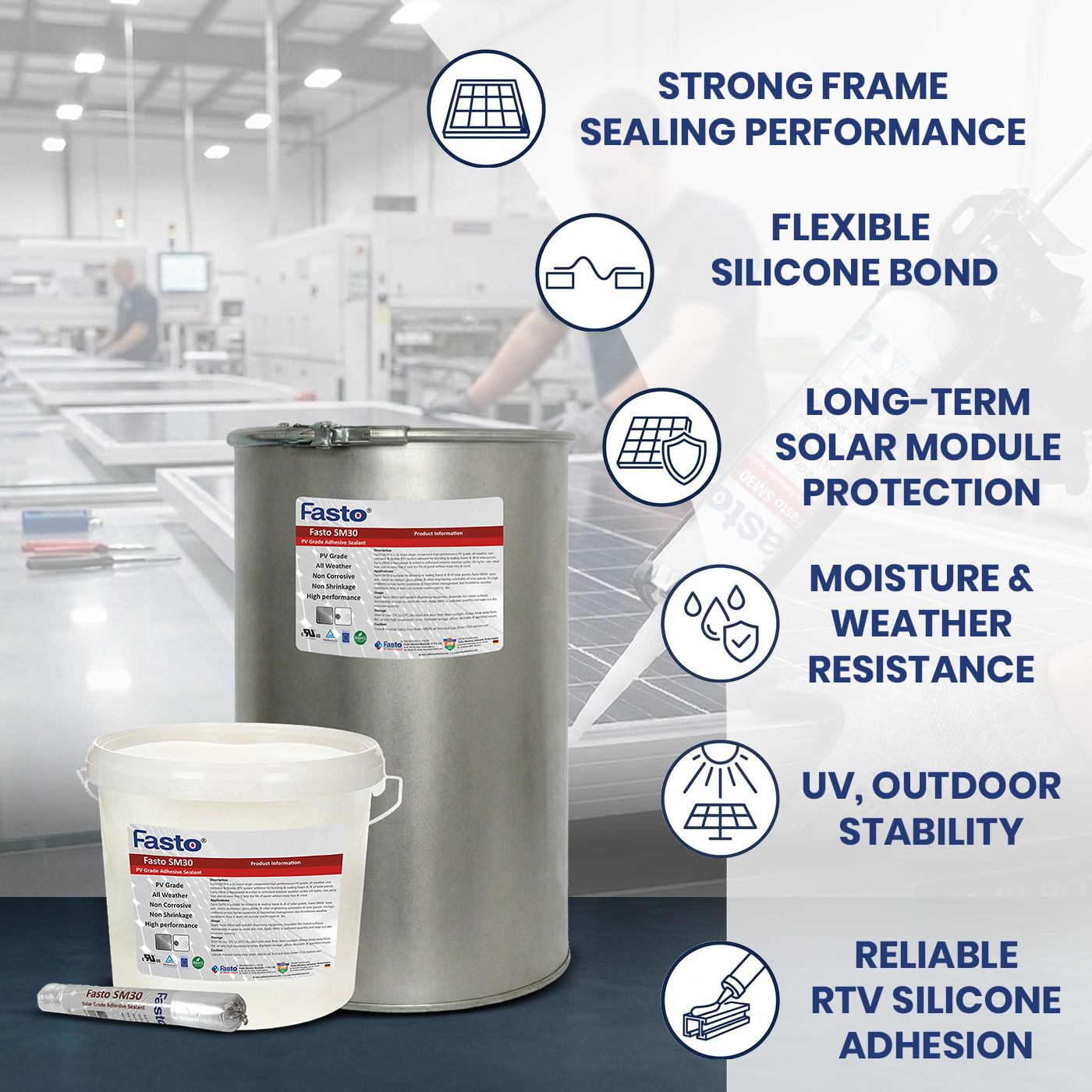

Fasto SM30 – Solar Frame Sealant, RTV Silicone Adhesives

Fasto SM30 is a single-component, moisture-curing, neutral-cure RTV silicone sealant designed for long-term sealing and bonding applications where durability, flexibility, and environmental resistance are critical. It is UL-certified, PV-grade, and non-corrosive, making it ideal for demanding industrial and solar applications.

Packaging:

Drum : 290kg

Bucket : 25kg

Sausage : 600ml

Features

Neutral Cure & Non-Corrosive
Safe for metals, electronics, and sensitive components without causing corrosion.
Excellent Weather & UV Resistance
Performs reliably under prolonged exposure to sunlight, rain, ozone, and pollutants.
High Flexibility & Elastic Recovery
Accommodates thermal expansion and contraction caused by temperature extremes.
All-Weather Performance
Maintains sealing integrity in hot, cold, humid, and outdoor environments.
Electrical Insulation Properties
High dielectric strength and volume resistivity for electrical safety.
UL & RoHS Compliant
Suitable for photovoltaic (PV) and electronics-related applications.

Benefits

Ensures long service life of sealed joints and assemblies
Reduces risk of seal failure due to vibration or thermal cycling
Enhances reliability of solar panels and junction boxes
Minimizes maintenance and rework costs
Ideal for industrial, renewable energy, and OEM applications

Primary Application	Sub-Applications	Functional Purpose	Key Performance Advantage
Solar Panel Bonding & Sealing	Module frame bonding, glass-to-frame sealing, backsheet sealing	Structural bonding & environmental sealing	PV-grade, high flexibility, excellent weather resistance
Junction Box (JB) Sealing	Sealing of solar panel JBs, electrical connection housings	Prevent moisture ingress & corrosion	Non-corrosive, high dielectric strength
Outdoor Electronics Sealing	Weather-exposed electronic enclosures, control boxes	Long-term environmental protection	UV, ozone & moisture resistance
Aluminium, Glass & Plastic Bonding	Aluminium frames, glass panels, engineering plastics	Secure bonding of dissimilar substrates	Strong adhesion, flexible cured seal
Expansion & Contraction Joint Sealing	Joints exposed to thermal movement	Absorbs movement without cracking	High elongation, resilient elasticity
Vibration-Resistant Sealing	Assemblies exposed to mechanical movement	Maintains seal integrity under vibration	Highly flexible, durable seal
Electrical Insulation & Protection	Electrically sensitive joints & interfaces	Enhances electrical safety	High volume resistivity & insulation

Surface Preparation

Ensure surfaces are clean, dry, and free from dust, grease, oil, rust, or loose particles.
Clean surfaces using a suitable Fasto cleaner for optimal adhesion.

Application Method

Apply Fasto SM30 using a manual or pneumatic dispensing gun.
Extrude a continuous, bubble-free bead with consistent pressure.
Assemble or tool the joint immediately before skin formation.
Remove excess sealant using a suitable cleaner.
For neat joints, use masking tape and remove it before skinning occurs.

Joint Design Guidelines

Suitable for gap filling up to 7 mm
For joints wider than 7 mm, use a backer rod or bond breaker tape
Avoid fully confined joints, as curing requires atmospheric moisture

Curing Information

Skin formation: approx. 8 minutes
Full cure: 24 hours (depends on humidity, temperature, and joint depth)
